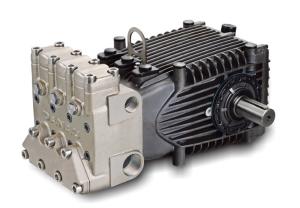

FLOWMONSTER DBH RECIPROCATING HIGH PRESSURE PLUNGER PUMP 74-169LPM

DBH SERIES

RECIPROCATING HIGH PRESSURE

PLUNGER PUMP

FEATURES

Forged stainless steel manifold, symmetrical inlet/outlet for left to right mounting

Die-cast alloy aluminum crankcase, anodized.

Stainless steel plungerwith ceramic coating and precision grinded.

PARKER High-low dual pressure packing, with integrated cooling

High volumetric efficiency checking valve, features spherical sealing areas.

Symmetrical power end with top and bottom mounting holes allows for easy left to right shaft conversion.

Manifold Material optional in STAINLESS 420, DUPLEX(SSD)2205

Applications:Municipal, environmental(water flushing, sewer jetting), petrochemical(oil pressurizing

transferring), mining, sea waterreverse osmosis desalination, food, drink, alcohol, chemical,

pharmaceutical and other industries.

IMPORTANCE

Inlet Port: 1 ½” BSP

Outlet Port: 1”BSP

Oil Bath Capacity:3800ml (half level of oil gauge)

Oil Type: 85W/90 or greater GEAR OIL

Water Inlet Pressure:0-50psi/3.5bar

Max Inlet Water Temp.50°C/122°F

APPLICABLE VALVES

UNLOADER VALVE

Max Pressure: 206bar/3000psi, 2800bar/4060psi

Max Flow: 200LPM/53GPM

Inlet/Outlet/Bypass Port: 1”

Brass forged body, stainless valve core and seat

SAFETY VALVE

Max Pressure: 206bar/3000psi.280bar/4060psi

Max Flow: 200LPM/53GPM

Inlet Port:3/4” Bypass Port: 1/2”

Brass forged body, stainless valve core and seat

VERSIONS

Gearbox reduction version

Aluminum alloy precision die casting housing, anodized.High-grade helical gear.

Reduction ratio: NO.1(2.18:1), NO.2(2.26:1),NO.3(2.94:1)

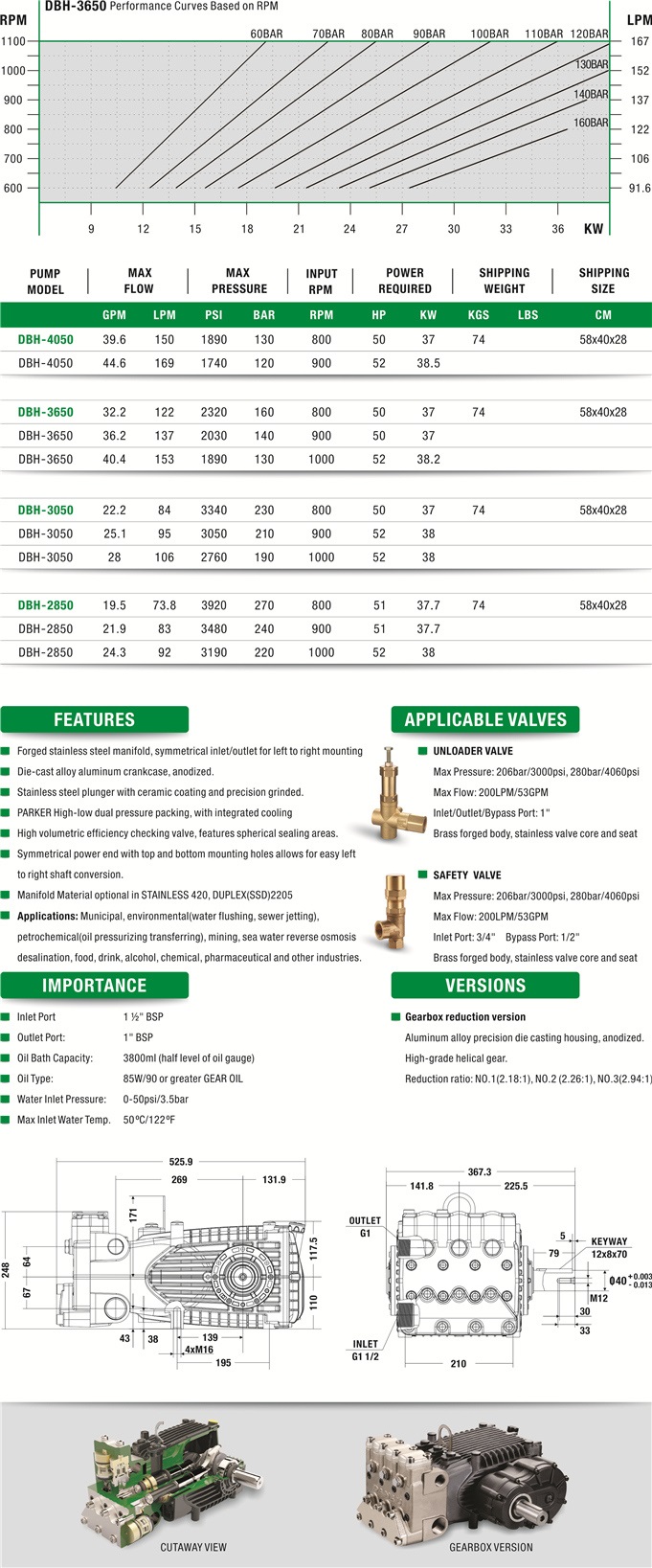

SPECIFICATIONS

APPLICATIONS

Pump head material - stainless steel 420

Application: municipal, sanitation, petrochemical, mining and other industries
