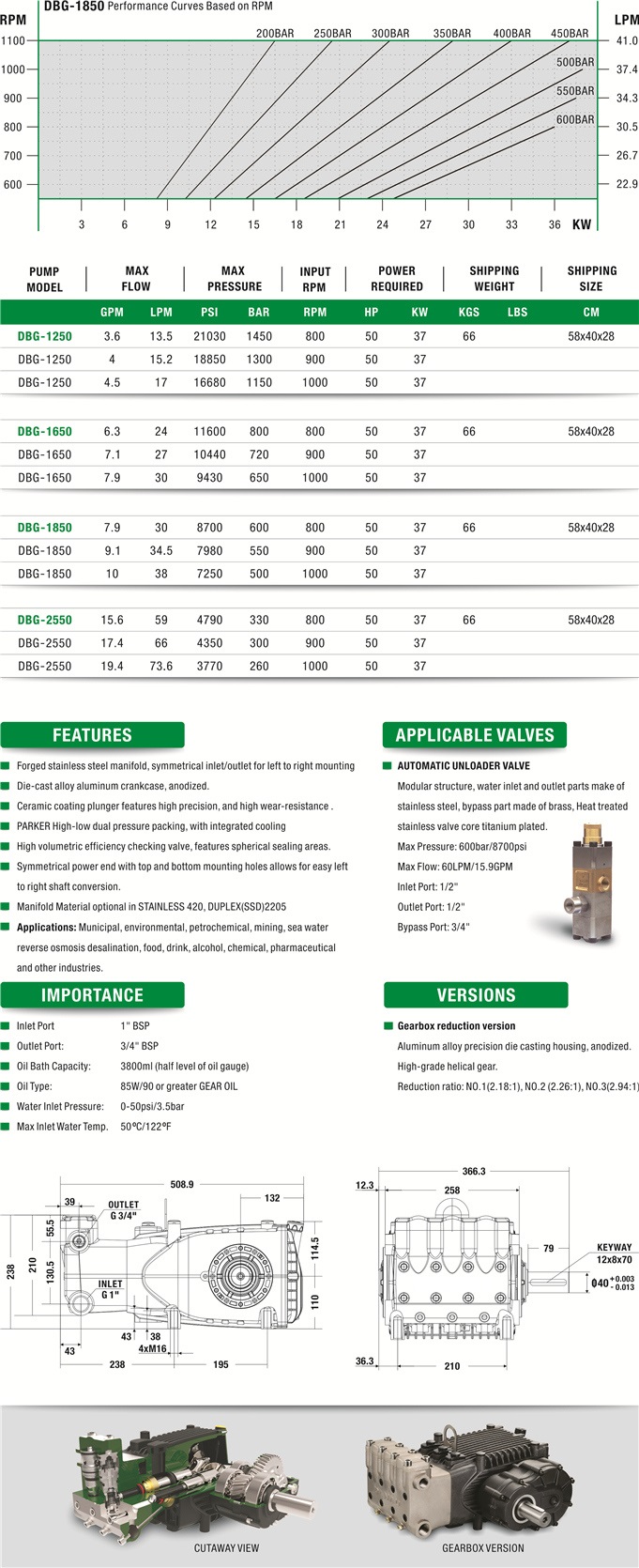

FLOWMONSTER DBG RECIPROCATING HIGH PRESSURE PLUNGER PUMP 260-1450bar

DBG SERIES

ULTRA-HIGH PRESSURE

PLUNGER PUMP

FEATURES

Forged stainless steel manifold, symmetrical inlet/outlet for left to right mounting

Die-cast alloy aluminum crankcase, anodized.

Ceramic coating plunger features high precision, and high wear-resistance.

PARKER High-low dual pressure packing, with integrated cooling.

High volumetric efficiency checking valve, features spherical sealing areas.

Symmetrical power end with top and bottom mounting holes allows for easy left to right shaft conversion.

Manifold Material optional in STAINLESS 420, DUPLEX(SSD)2205.

Applications: Municipal, environmental, petrochemical, mining, sea water reverse osmosis desalination,

food, drink, alcohol, chemical, pharmaceutical and other industries.

IMPORTANCE

Inlet Port: 1" BSP

Outlet Port: 3/4” BSP

Oil Bath Capacity: 3800ml (half level of oil gauge)

Oil Type: 85W/90 or greater GEAR OIL

Water Inlet Pressure: 0-50psi/3.5bar

Max Inlet Water Temp. :50° C/122° F

APPLICABLE VALVES

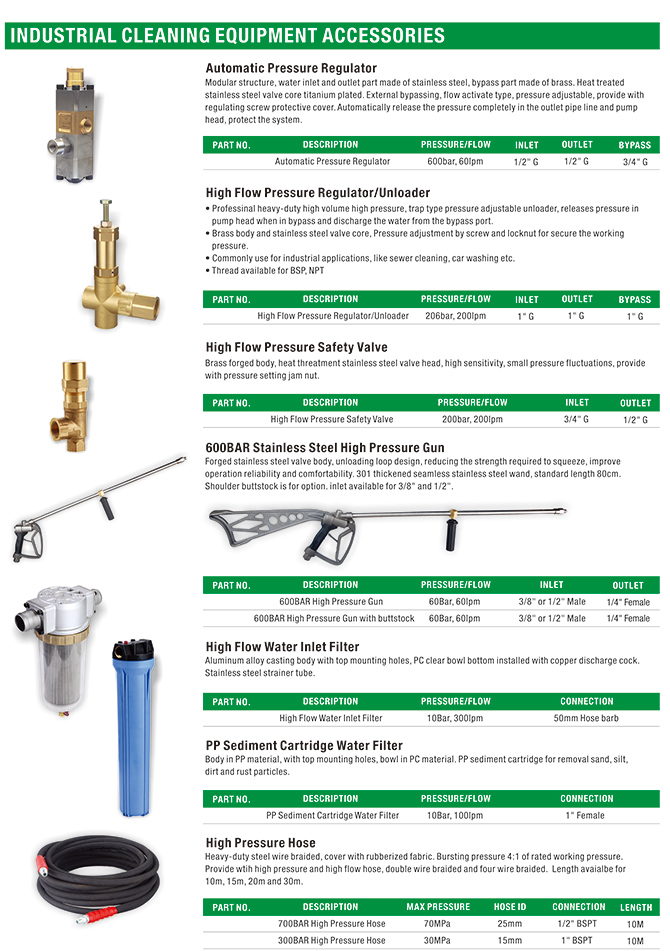

AUTOMATIC UNLOADER VALVE

Modular structure, water inlet and outlet parts make of stainless steel, bypass part made of brass, Heat

treated stainless valve core titanium plated.

Max Pressure: 600bar/8700psi

Max Flow: 60LPM/15.9GPM

Inlet Port: 1/2"

Outlet Port: 1/2"

Bypass Port: 3/4"

VERSIONS

Gearbox reduction version

Aluminum alloy precision die casting housing, anodized. High-grade helical gear.

Reduction ratio: NO.1(2.18:1), NO.2 (2.26:1), NO.3(2.94:1)

SPECIFICATIONS

APPLICATIONS

Pump head material - stainless steel 420

Application: municipal, sanitation, petrochemical, mining and other industries
