FLOWMONSTER HT-F3 High Pressure Hot Temperature water Pump 11-30LPM 70BAR/1015PSI

Name: FLOWMONSTER HTF3 High Pressure Hot Temperature water Pump 1130LPM 70BAR1015PSI
Brand: FLOWMONSTER
Price: 500 USD

Quality FLOWMONSTER HT-F3 High Pressure Hot Temperature water Pump 11-30LPM 70BAR/1015PSI wholesale

Brand Name : FLOWMONSTER

Model Number : HT-F3

Certification : CE, RoHS

Place of Origin : CN

MOQ : 1-100pcs

Price : 500-1200pcs

Payment Terms : D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 10-30 working days

Packaging Details : Carton

Material : Brass

Theory : Plunger Pump

Contact Now

FLOWMONSTER HT-F3 High Pressure Hot Temperature water Pump 11-30LPM 70BAR/1015PSI

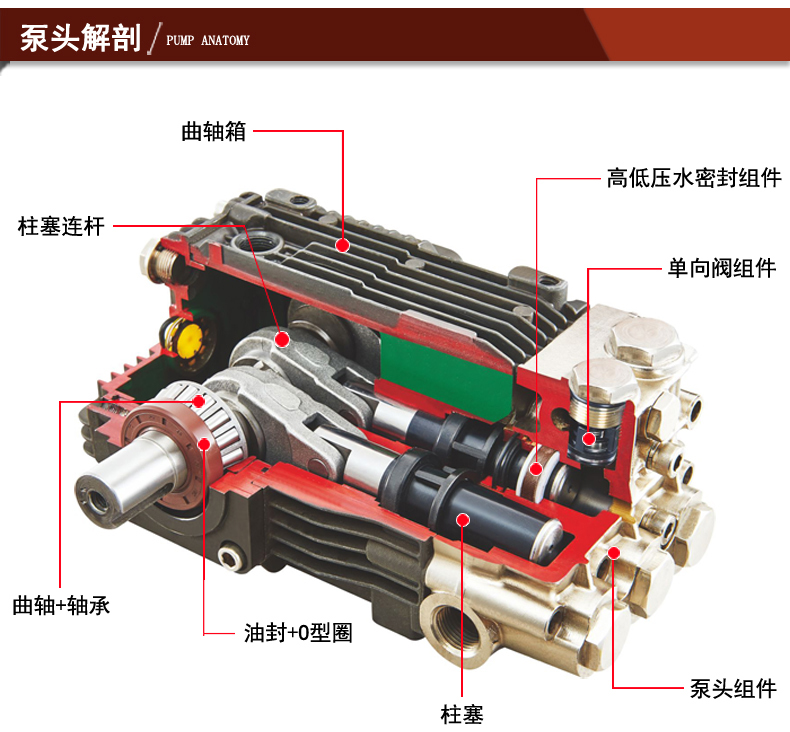

Features :

Ceramic Plunger
Hardened, Tempered Steel Shaft
Special Seal Kit
Max. 85 °C

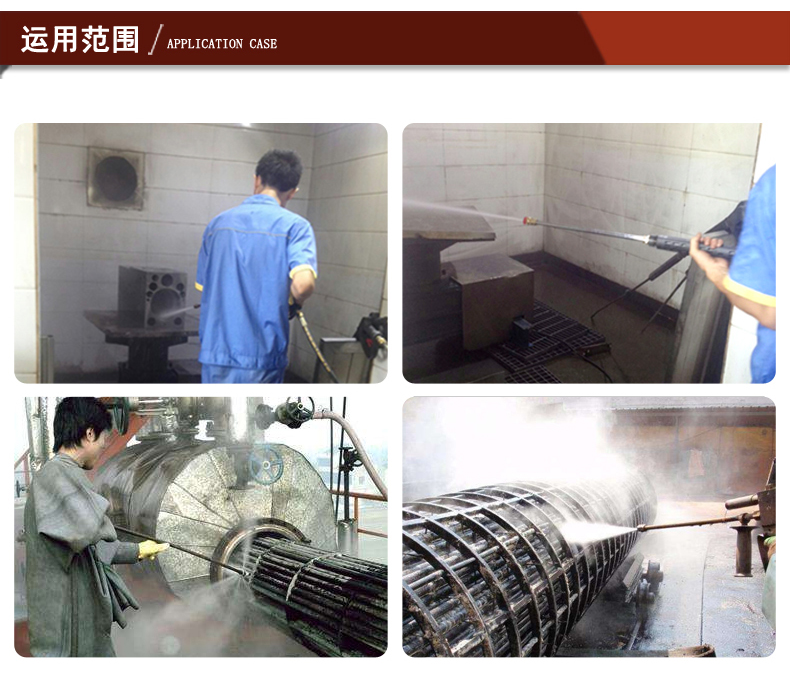

Applications:

Truck Mounted Carpet Cleaning
Oil Rig / Oil Staion/ Oil Refinery Cleaning
In-Plant Cleaning & Sanitizing
Vehicle Cleaning
Municipal Projects Cleaning

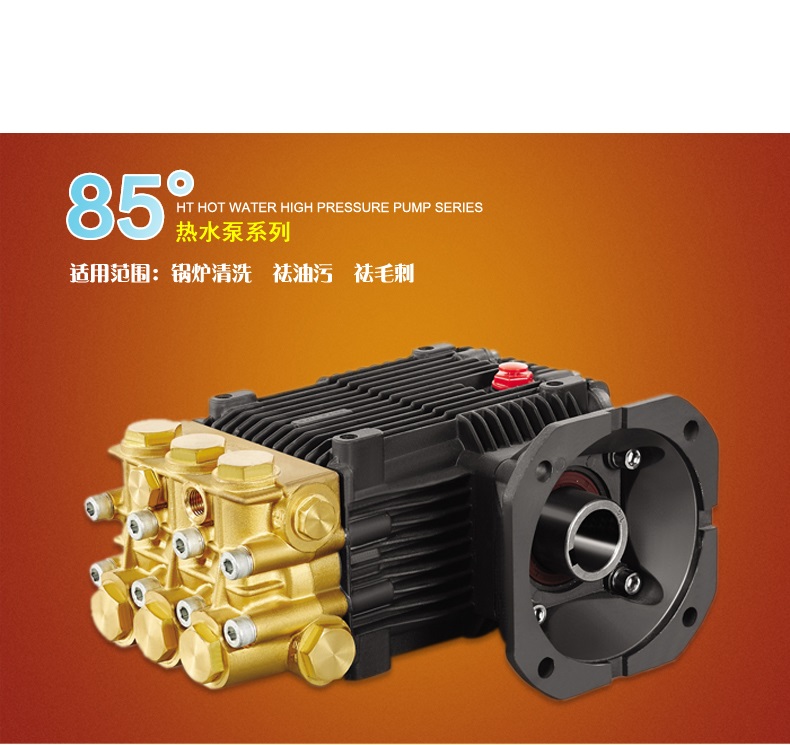

The HT series high temperature pumps are designed to withstand the extra high temperature found in some fluid solutions in applications, such as carpet cleaning, boiler feed, hot-water pressure washers and other industrial high temperature applications. These pumps have a flow range up to 30 L/min.

Model	Flow		Pressure		Power		Speed	Plunger Dia	Stroke	Temperature
Model	l/min	gpm	bar	psi	hp	kw	rpm	mm	mm	°C
HT1207	11.58	3.06	70	1015	3	2.2	1450	22	7	85
HT1407	14.06	3.71	70	1015	3	2.2	1450	22	8.5	85
HT1607	16.54	4.37	70	1015	4	3	1450	22	10	85
HT2307	23.15	6.12	70	1015	5.5	4	1450	22	14	85
HT3007	29.89	7.9	70	1015	7.5	5	1450	22	14	85

FLOWMONSTER HT-F3 High Pressure Hot Temperature water Pump 11-30LPM 70BAR/1015PSI

FLOWMONSTER HT-F3 High Pressure Hot Temperature water Pump 11-30LPM 70BAR/1015PSI Images
